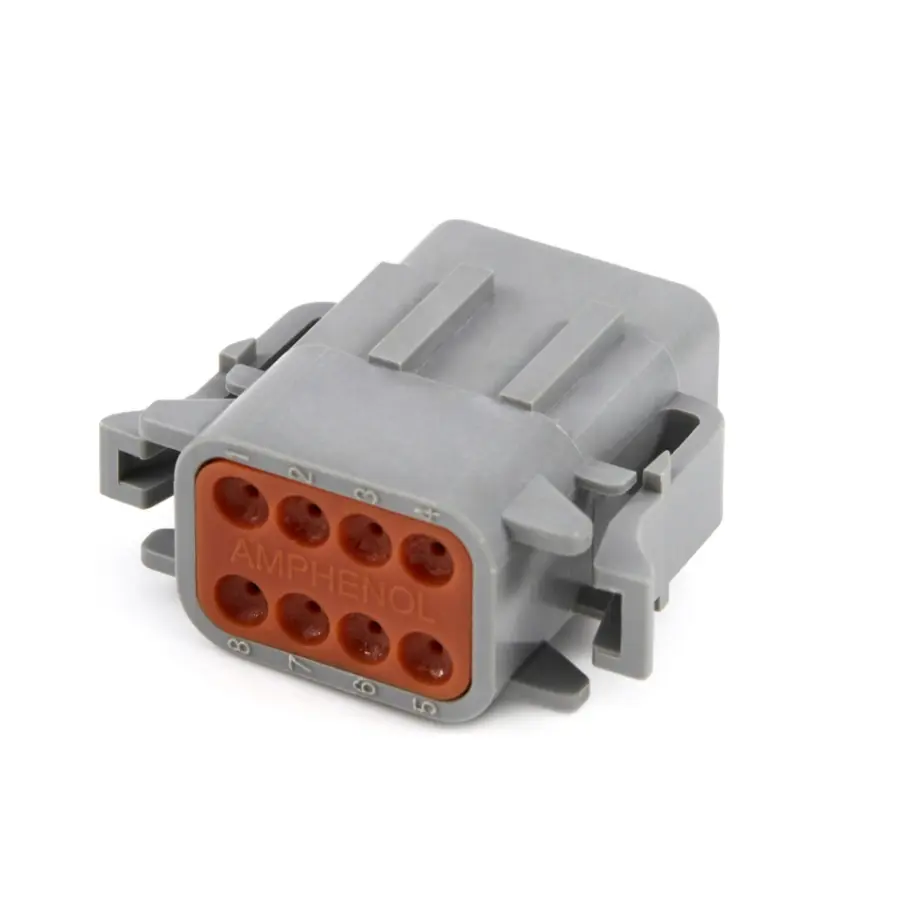

ATM06-08SA Amphenol 8 Way Housing (pack 10)

ATM Series™ connectors are a high-performance, cost effective solution able to be used in a variety of interconnect applications: Heavy Duty, Transportation, Marine, Diagnostic, Military, Alternative Energy and Agricultural. They contain superior environmental seals and seal retention capabilities.

The connector design incorporates an integral latching system that ensures a definitive electrical and mechanical connection. Connector housings are manufactured with a thermoplastic material that is not only durable, but has excellent UV resistance, dielectric/mechanical properties and environmentally RoHS compliant. The sealing system is comprised of a front and rear silicone, multi-sealing perimeter against environmental ingress. Contacts are derived from quality copper alloy to ensure an electrically-reliable connection. ATM Series™ connectors are compatible with other existing standard products industry-wide such as Deutsch DTM Series. Equivalent to DTM06-08S and mates with ATM04-08P and DTM04-08P.

Housing Only – look at related products for retaining wedge lock and pin crimps. Full kit with both plug, socket wedges and crimps look at ATM8PS-KIT.
