ATM 12 Position Kit

ATM Series™ connectors are a high-performance, cost effective solution able to be used in a variety of interconnect applications: Heavy Duty, Transportation, Marine, Diagnostic, Military, Alternative Energy and Agricultural. They contain superior environmental seals and seal retention capabilities.

The connector design incorporates an integral latching system that ensures a definitive electrical and mechanical connection. Connector housings are manufactured with a thermoplastic material that is not only durable, but has excellent UV resistance, dielectric/mechanical properties and environmentally RoHS compliant. The sealing system is comprised of a front and rear silicone, multi-sealing perimeter against environmental ingress. Contacts are derived from quality copper alloy to ensure an electrically-reliable connection. ATM Series™ connectors are compatible with other existing standard products industry-wide such as Deutsch DTM Series. Equivalent to DTM06-12S and DTM04-12P.

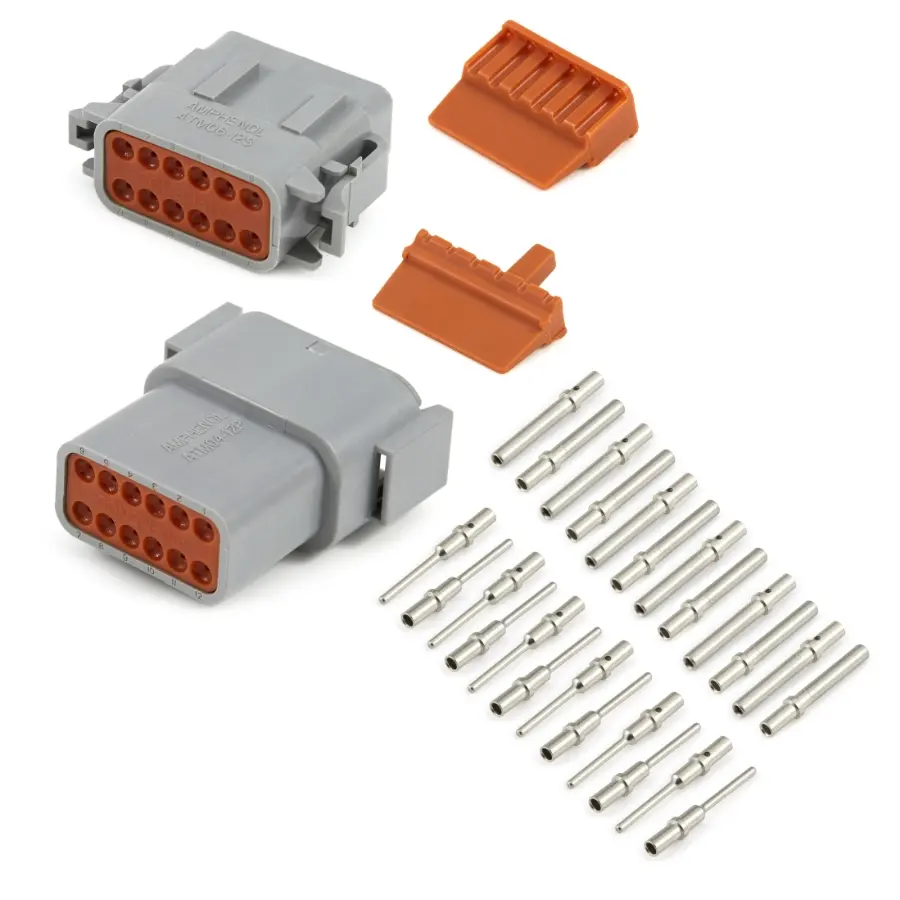

Complete kit includes the following

• Qty. 12 | AT60-202-20141, Pin Terminal, Size 20, 22-20 Ga.
• Qty. 1 | AWM-12P, ATM 12-Pin Plug Wedge
• Qty. 1 | ATM04-12PA, ATM 12-Pin Receptacle Connector
• Qty. 12 | AT62-201-20141, Socket Terminal, Size 20, 22-20 Ga.
• Qty. 1 | AWM-12S, ATM 12-Pin Receptacle Wedge
• Qty. 1 | ATM06-12SA, ATM 12-Pin Plug Connector
