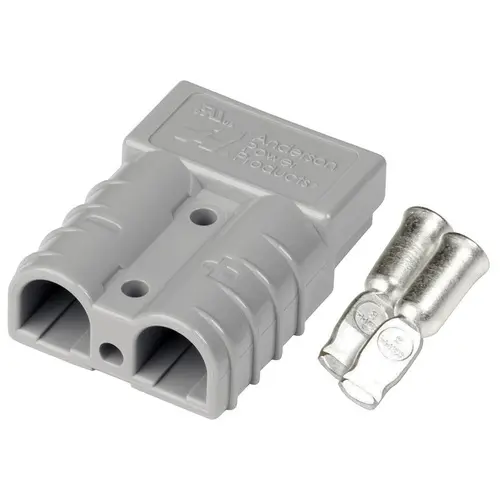

Anderson 50A Plug
Weather Resistant, Heavy Duty, Easily Crimped or Soldered, Genderless 50 amp Anderson Plug
Perfect for making up a wiring adapter for camping or for connecting your 2nd battery on a trailer or caravan. Separate Plug Poles also sold
- The smallest housings work with wire contacts up to 6 AWG [10 mm²]
- Genderless design mates with itself. Mechanical keys are color coded.
- Connectors feature a one piece plastic housing using stainless steel springs to hold low resistance contacts in place.
- Wires sizes from #16 (1.5 mm²) to #6 (13.3 mm²) are held in the smallest of the Anderson Style housings.
- Low Resistance Silver or Tin Plated Copper Contacts Allows UL rated currents up to 120 amps
- UL Rated for Hot Plugging up to 50 Amps Great for battery or other applications where the ability to interrupt circuits is required
It is important to correctly crimp the poles prior to insertion, see our range of tooling for the correct crimp tool.
